Product Overview

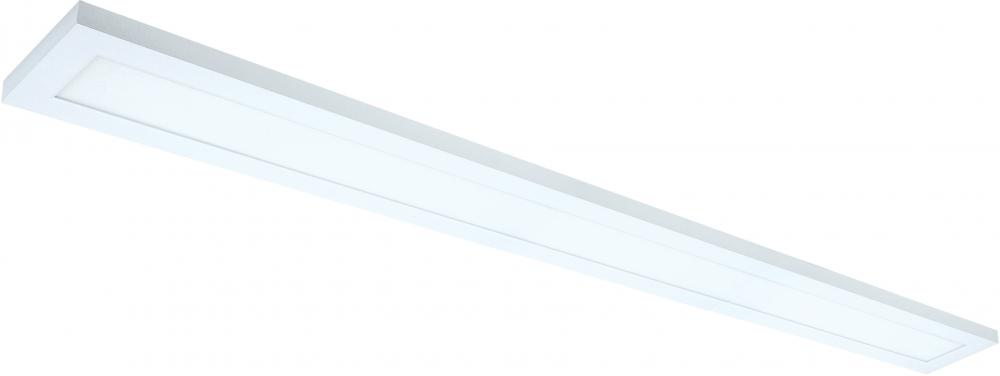

30W; 5.5 in.; x 36 in.; Surface Mount LED Fixture; 4000K; 90 CRI; Low Profile; White Finish; 120/277V

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

Edge Lit

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Dimmable:

Yes-Dimmable

Each Height:

8.27

Each Length:

37.01

Each Width:

2.48

Length:

36

Lumens:

2600L

Tariff Code:

9405.11.8020

Warranty:

5 Year Limited - Fixtures

Amps:

0.250/0.108A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

120V only

Dimming Type:

Reverse Phase or Phase Selectable

Each Cube:

0.4393

Each Quantity:

1

Efficacy:

86.67 LPW

FCC Compliant:

Yes

Feature 1:

Length: 36.00 inches, Width: 5.50 inches, Height: 0.75 inches

Feature 2:

White Finish

Feature 3:

5 year limited warranty

Feature 4:

2600 lumens

Feature 5:

Dimmable

Feature 6:

4000K Cool White Light

Feature 7:

Superior 90 CRI light quality

Feature 8:

Rated for 50,000 hours

Feature 9:

FCC and RoHS compliant

Finish Family:

White

Fixture shape:

Linear

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Long Description:

Satco's 62-1256 30 watt, 36 inch by 5 inch surface mount LED fixture is an easy to install lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hospitals, offices, and retail spaces with this dimmable, LED surf

Material:

Aluminum

Mounting Procedure:

Ceiling

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.74

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 30 watt, 36 inch by 5 inch surface mount LED fixture is an easy to install lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hospitals, offices, and retail spaces with this dimmable, LED surface moun

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

30W/LED/5"X36"/FLUSH/4K/WH

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Wattage Selectable:

No

Weight Lb.:

4.39
