Product Overview

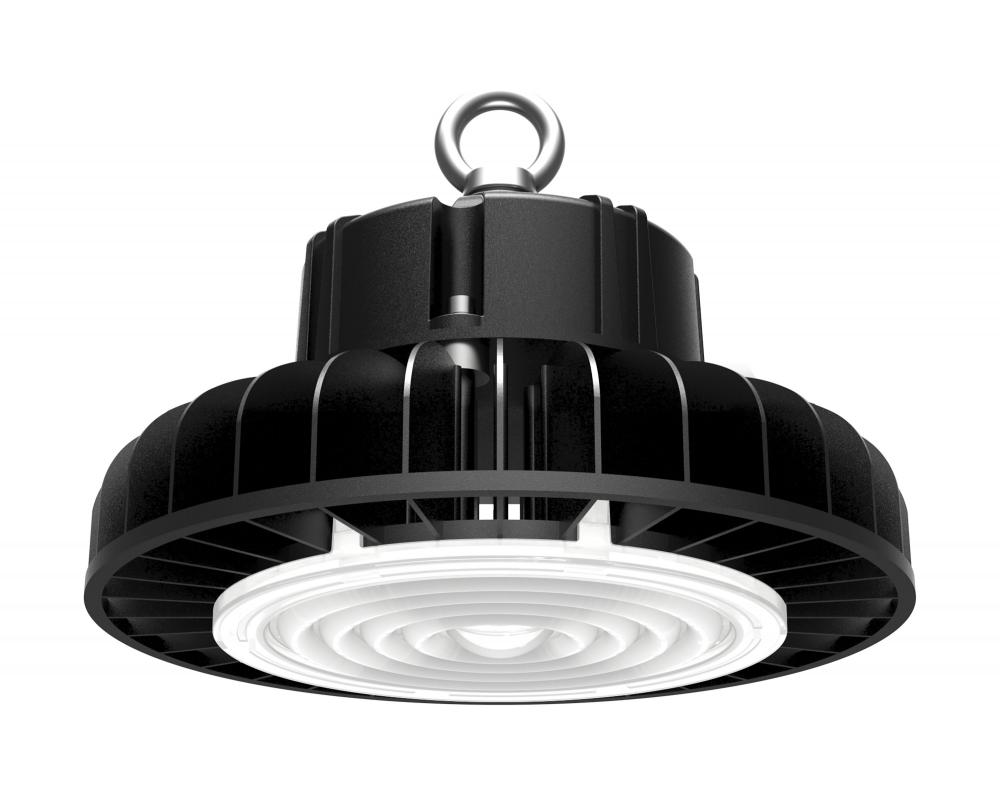

LED High bay; 100W; 4000K; 277/480V; Black Finish

Standard Information

Category:

Utility

Subcategory:

Other Utility

Option:

LED

Prop 65

Refinement Options

Category:

Hi-Bay

Sub Category:

UFO

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Diameter:

9.44

Dimmable:

Yes-Dimmable

Each Height:

9.65

Each Length:

11.02

Each Width:

11.02

Lumens:

13000L

Warranty:

5 Year Limited - Fixtures

Wire Length:

6.56

Amps:

0.361-0.208A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

70+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Each Cube:

0.6782

Each Quantity:

1

Efficacy:

130.00 LPW

FCC Compliant:

Yes

Finish Family:

Black

Fixture shape:

Round

Incandescent Equivalent:

500W

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Transparent

Lens Material:

Polycarbonate (PC)

Material:

Aluminum Alloy

Mounting Procedure:

Ceiling: Loop/Hook/NPT adapter

Operating Temp:

-30C (-22F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.92

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cETLus

SDS class:

LED_Lamp

Short Description:

LED UFO HIGHBAY - 100W/4000K

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

6.17

Wire Gauge:

18

Wire Quantity:

2

Wire Temp Rating:

105C (221F)
