Product Overview

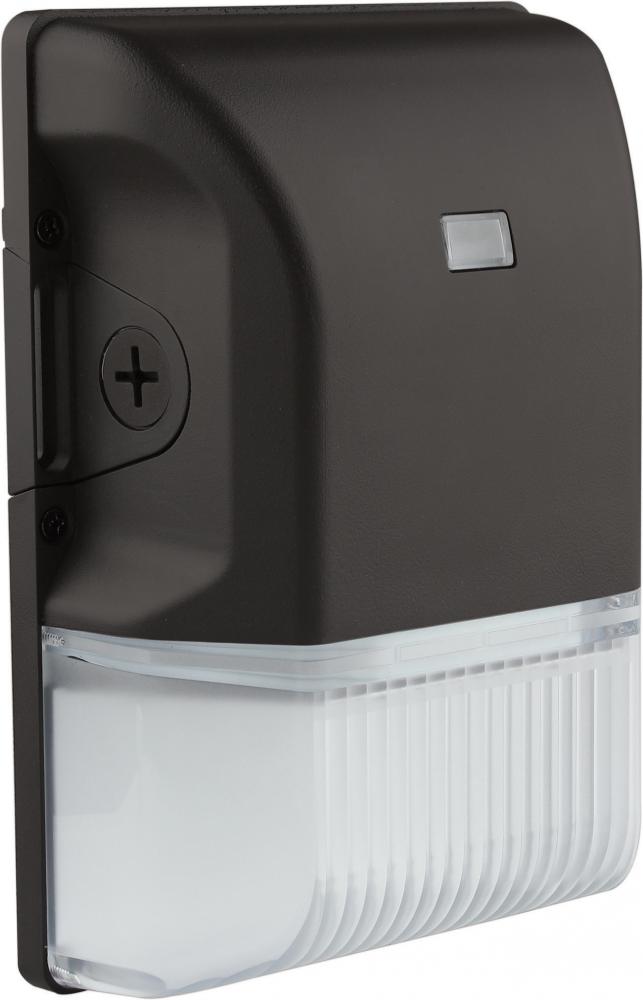

LED Small Wall Pack; 20W; 5000K; Black Finish; 100-277V

Standard Information

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Black

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Wall Pack

Sub Category:

Mini

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Non-Dimmable

Each Height:

8.9

Each Length:

6.1

Each Width:

3.5

Lumens:

2761L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.200-0.072A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

100

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80+

Each Cube:

0.11

Each Quantity:

1

Efficacy:

138.05 LPW

FCC Compliant:

Yes

Feature 1:

Maintenance free - no bulb to change

Feature 2:

Die-cast Aluminum Body

Feature 3:

IP65, Wet rated for outdoor use

Feature 4:

Built-in Photocell

Feature 5:

UV Stabilized Powder Coated Finish

Finish Family:

Black

Incandescent Equivalent:

100W-150W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Material:

Polycarbonate (PC)

Long Description:

The NUVO 65-266 LED 20-watt Small Wall pack offers natural light with a 100 degree beam spread in a black finish. This premium fixture features a photocell sensor and is suitable for use on commercial buildings for exterior lighting. Maintenance free and l

Material:

Cast Aluminum

Mounting Procedure:

Wall

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Color Box

Photocell:

Has Photocell

Power Factor:

0.92

Quantity In Pack:

1

Rec Spacing Between Fixtures:

6.56 ft. to 9.84 ft.

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The NUVO LED 20-watt Small Wall pack offers natural light with a 100 degree beam spread in a black finish. This premium fixture features a photocell sensor and is suitable for use on commercial buildings for exterior lighting. Maintenance free and long-las

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

LED SMALL WALL PACK W/PHOTOCEL

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Weight Lb.:

1.98
